DSR-30AZ Direct Driven Screw Air Compressor

MODEL：DSR-30AZ

POWER：22KW

HORSEPOWER：30HP

Product desciption

◆ Voltage: 380V/50HZ. 7.5A、10A are direct startup, above 15A is star triangle start
◆ Other pressure (up to 16bar) screw air compressor, welcome to negotiate
◆ The company continuously improves the products and retains the right to change the design.Parameters are subject to change without prior notice
◆ A after the model represents air cooling and W represents water cooling

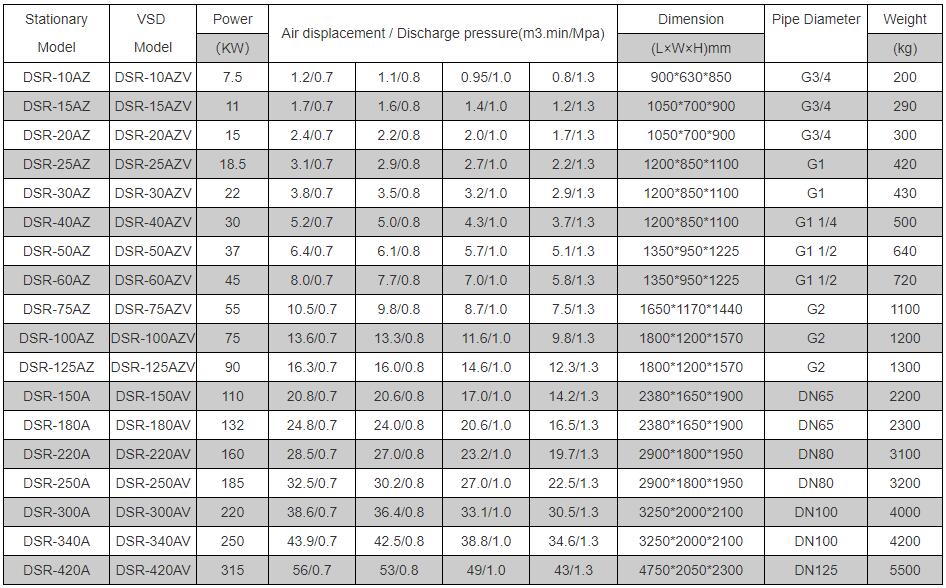

Technical parameters of direct driven screw air compressor

Stationary Model	VSD Model	Power	Air displacement / Discharge pressure(m3.min/Mpa)				Dimension	Pipe Diameter	Weight
Stationary Model	VSD Model	（KW）	Air displacement / Discharge pressure(m3.min/Mpa)				(L×W×H)mm	Pipe Diameter	(kg)
DSR-10AZ	DSR-10AZV	7.5	1.2/0.7	1.1/0.8	0.95/1.0	0.8/1.3	900630850	G3/4	200
DSR-15AZ	DSR-15AZV	11	1.7/0.7	1.6/0.8	1.4/1.0	1.2/1.3	1050700900	G3/4	290
DSR-20AZ	DSR-20AZV	15	2.4/0.7	2.2/0.8	2.0/1.0	1.7/1.3	1050700900	G3/4	300
DSR-25AZ	DSR-25AZV	18.5	3.1/0.7	2.9/0.8	2.7/1.0	2.2/1.3	12008501100	G1	420
DSR-30AZ	DSR-30AZV	22	3.8/0.7	3.5/0.8	3.2/1.0	2.9/1.3	12008501100	G1	430
DSR-40AZ	DSR-40AZV	30	5.2/0.7	5.0/0.8	4.3/1.0	3.7/1.3	12008501100	G1 1/4	500
DSR-50AZ	DSR-50AZV	37	6.4/0.7	6.1/0.8	5.7/1.0	5.1/1.3	13509501225	G1 1/2	640
DSR-60AZ	DSR-60AZV	45	8.0/0.7	7.7/0.8	7.0/1.0	5.8/1.3	13509501225	G1 1/2	720
DSR-75AZ	DSR-75AZV	55	10.5/0.7	9.8/0.8	8.7/1.0	7.5/1.3	165011701440	G2	1100
DSR-100AZ	DSR-100AZV	75	13.6/0.7	13.3/0.8	11.6/1.0	9.8/1.3	180012001570	G2	1200
DSR-125AZ	DSR-125AZV	90	16.3/0.7	16.0/0.8	14.6/1.0	12.3/1.3	180012001570	G2	1300
DSR-150A	DSR-150AV	110	20.8/0.7	20.6/0.8	17.0/1.0	14.2/1.3	238016501900	DN65	2200
DSR-180A	DSR-180AV	132	24.8/0.7	24.0/0.8	20.6/1.0	16.5/1.3	238016501900	DN65	2300
DSR-220A	DSR-220AV	160	28.5/0.7	27.0/0.8	23.2/1.0	19.7/1.3	290018001950	DN80	3100
DSR-250A	DSR-250AV	185	32.5/0.7	30.2/0.8	27.0/1.0	22.5/1.3	290018001950	DN80	3200
DSR-300A	DSR-300AV	220	38.6/0.7	36.4/0.8	33.1/1.0	30.5/1.3	325020002100	DN100	4000
DSR-340A	DSR-340AV	250	43.9/0.7	42.5/0.8	38.8/1.0	34.6/1.3	325020002100	DN100	4200
DSR-420A	DSR-420AV	315	56/0.7	53/0.8	49/1.0	43/1.3	475020502300	DN125	5500
